Zeiss Axio Zoom.V16 Fluorescence Microscope with Apotome 3

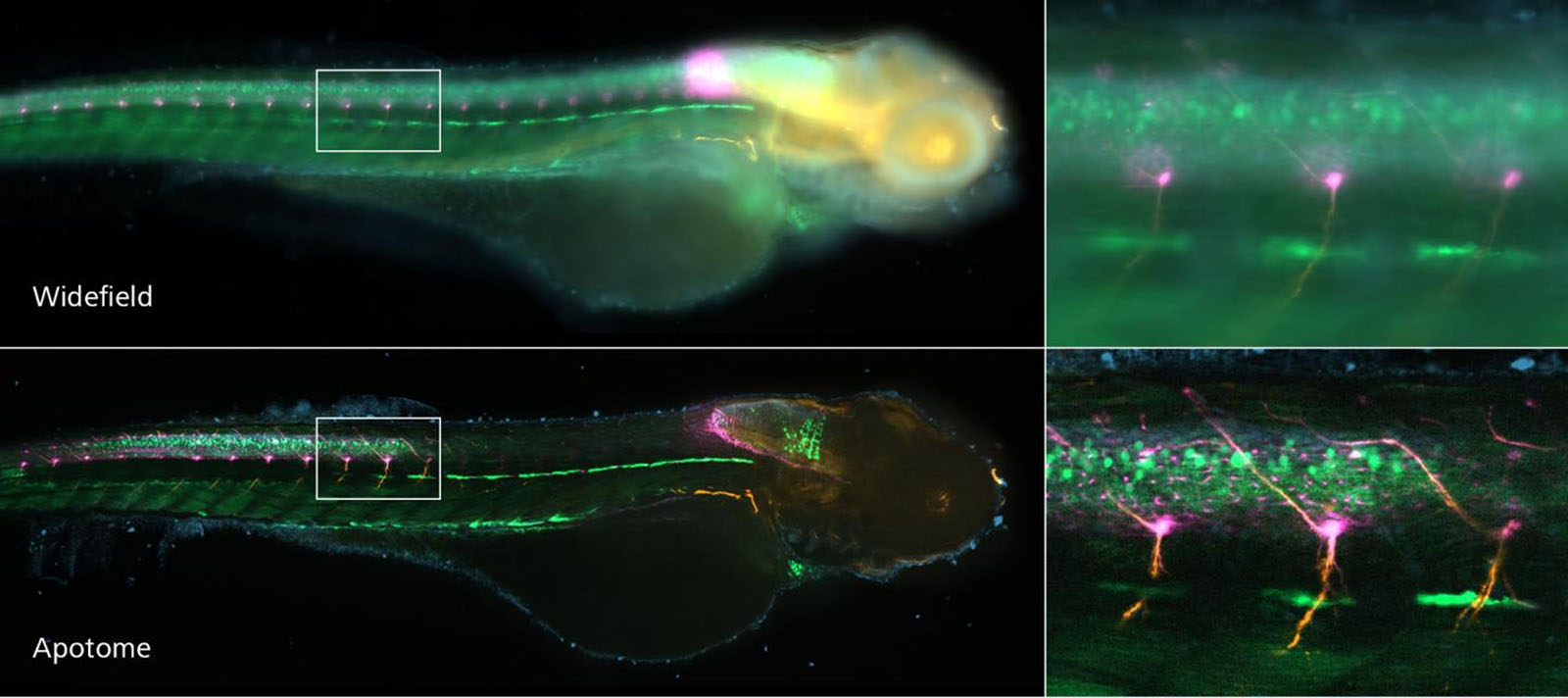

ZEISS Axio Zoom.V16 & Apotome 3 - Engineered for the demanding requirements of large-sample imaging, the ZEISS Axio Zoom.V16 features a 16x zoom and a class-leading 0.25 N.A. This allows for maximum light collection even at medium magnification, ensuring bright fluorescence contrast across wide fields of view. The integration of ZEISS Apotome 3 technology further enhances results by removing background fluorescence and out-of-focus light. This synergy enables researchers to generate high-contrast optical sections and precise 3D renderings of complex specimens without the operational complexity of traditional confocal microscopy.

Picture 1

Picture 3_1600

Zoom Range:

  • 16:1 Motorized Apochromatic Zoom (0.7x to 11.2x).

Hardware Specifications:

  • Microscope Stand: Motorized Axio Zoom.V16 body with a motorized focus column (490 mm).
  • Control System: SYCOP 3 System Control Panel featuring a 5.7” color touch screen, joystick, and scroll wheels for zoom and focus control.
  • Stage: Includes a Ball and Socket stage (+/- 30° rotatable) for versatile sample positioning.
  • Fluorescence Illumination: HXP 200 C (Metal Halide) high-pressure light source with integrated shutter.
  • Reflected Light: CL 6000 LED cold-light source with gooseneck light guides and a slit-ring illuminator.

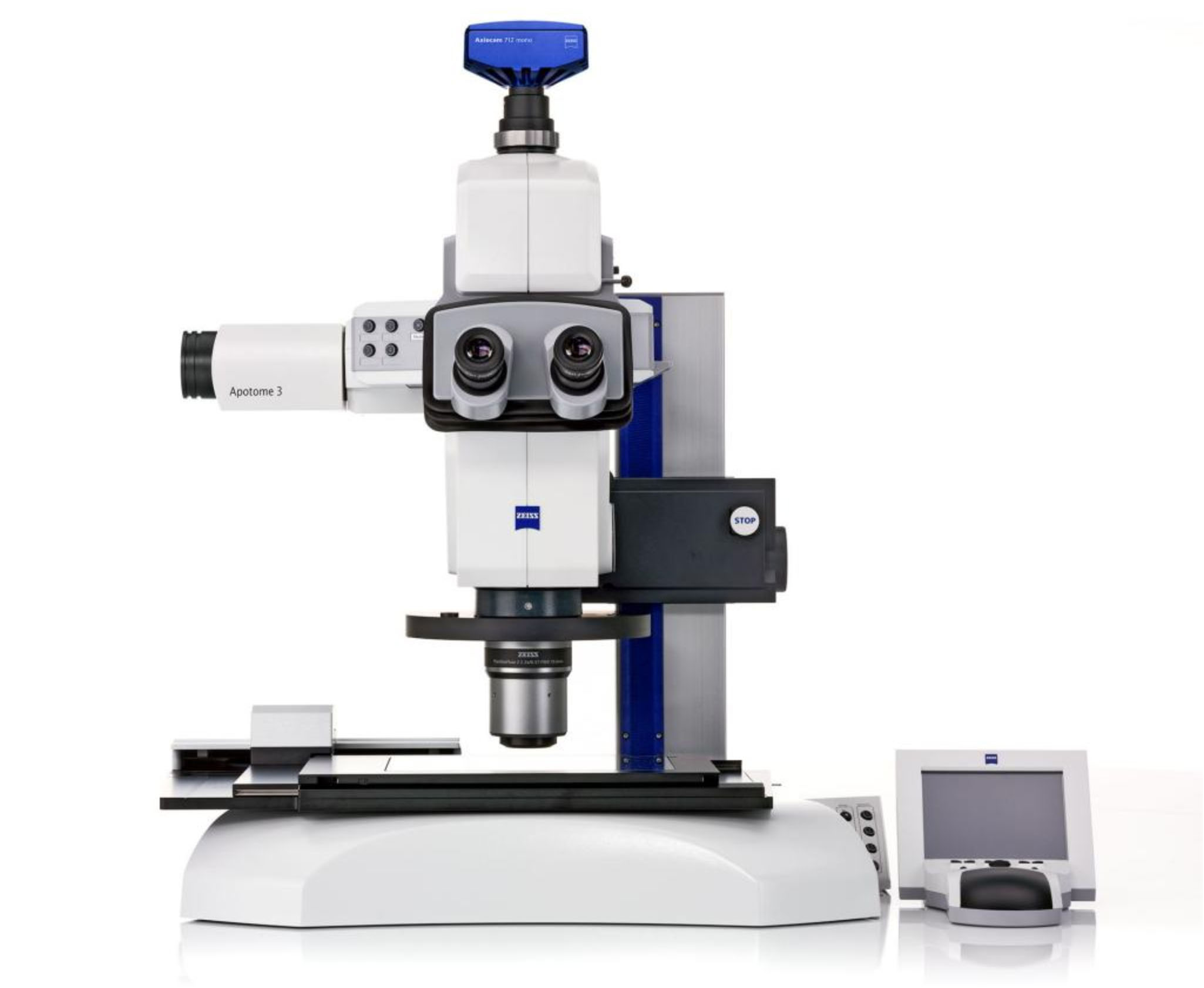

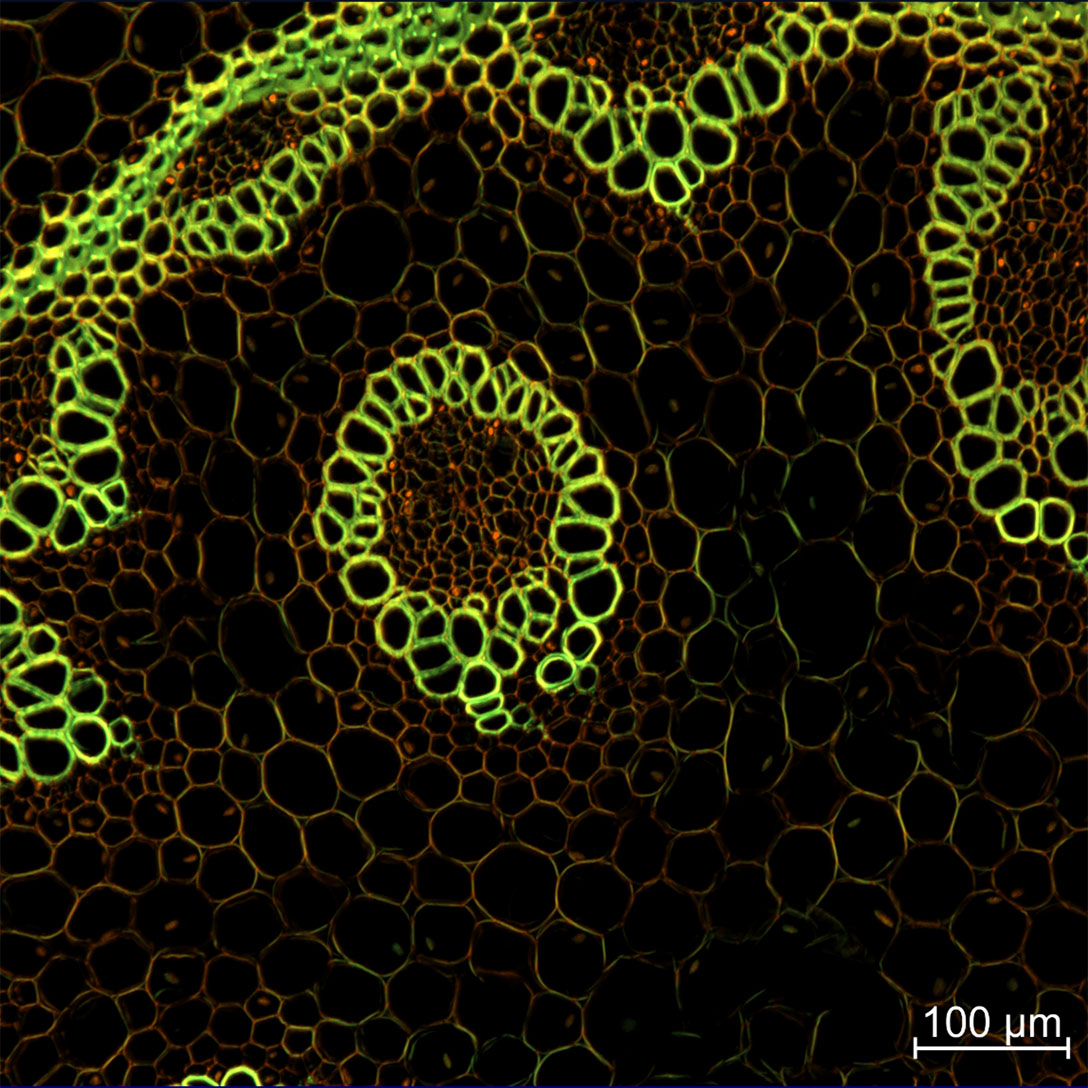

Zeiss Axio Zoom V16_1088x1088

Objectives (Z-Series):

  • PlanApo Z 0.5x/ 0.125 (W.D.: 114 mm)
  • PlanNeoFluar Z 1.0x/ 0.25 (W.D.: 56 mm)
  • PlanNeoFluar Z 2.3x/ 0.57 (W.D.: 10.6 mm)

Fluorescence Filter Sets:

  • Filter Set 38 (GFP): EX BP 470/ 40, EM BP 525/ 50
  • Filter Set 43 (Cy3): EX BP 545/ 25, EM BP 605/ 70
  • Filter Set 50 (Cy5): EX BP 640/ 30, EM BP 690/ 50

Cameras:

  • Axiocam 705 Mono: 5.07 Megapixel SONY Exmor CMOS sensor, 3.45 μm pixel size (High-sensitivity monochrome).
  • Axiocam 705 Color: 5.07 Megapixel SONY Exmor CMOS sensor, 3.45 μm pixel size (High-resolution color).

Hourly rate

Location

Y210

Staff-in-charge

Dr. Shuqi ZHANG

Scientific Officer

Dr. Chenyin WANG

Scientific Officer
