Description

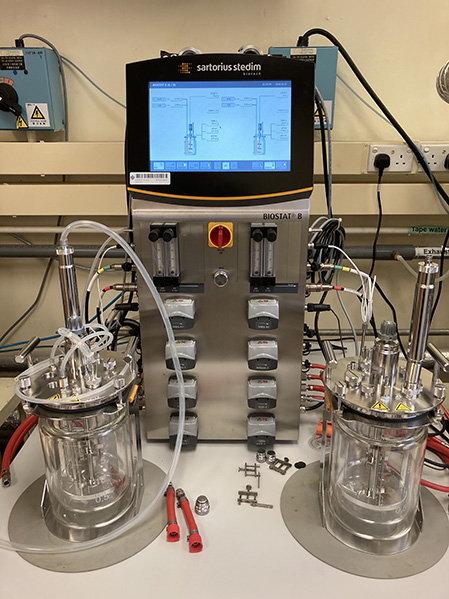

The BIOSTAT B is a benchtop fermenter/bioreactor designed for various biotechnological and biopharmaceutical applications. The main configuration of the system is developed for microorganisms cultivation such as bacteria, yeast and fungi, plus animal, plant and insect cell culture. The system can control two 2 L vessels independently, with the CONTROLLER module for the measurement and control capabilities of temperature, stirrer speed, pH and dissolved oxygen. In addition, the flexible aeration strategies allow air, oxygen and nitrogen flow control, providing different aerobic and anaerobic processes.
Specifications:
- Motor drive
- Rotation speed: 20 - 2000 rpm
- 4 peristaltic pumps
- Acid: Fixed 44 rpm
- Base: Fixed 44 rpm
- Anti-foam agent: Fixed 5 rpm
- Substrate feed: 5 - 150 rpm
- BioPAT Xgas off gas (O2 and CO2) sensor
- BioPAT Fundalux Turbidity probe
- 1-channel absorption probe
- Wavelength: 840 - 910 nm
- 2 x 2L double-walled glass UniVessel
- Exhaust cooler
- pH sensor
- pO2 sensor
- Foam sensor
- Temperature sensor
- Temperature control: 0 - 80 °C

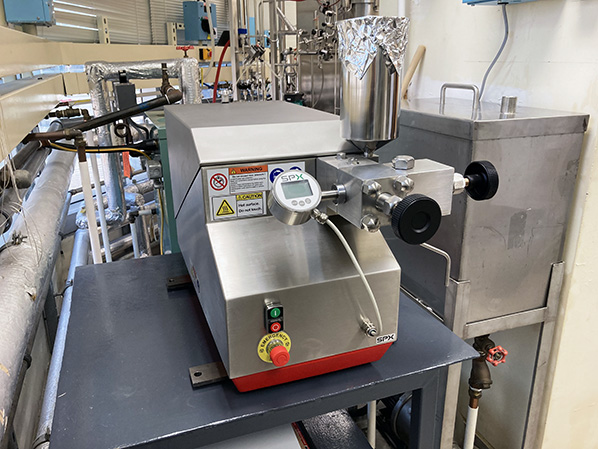

APV1000 Laboratory Homogenizer
An APV1000 homogenizer is also available for sample preparation.
Specifications
- Capacity: 22 l/h
- Minimum test sample: 150 ml
- Maximum operating pressure: 1000 bar
Hourly rate
- Internal users: $8
- Collaborators: $16
- External users: $40
Location
Y1216
Staff-in-charge
Dr. Ryan Chow
Scientific Officer
- Z215
- 34008057
- hoyin.chow@polyu.edu.hk
Dr. Alan Leung
Scientific Officer
- Z215
- 34008984
- alan.sl.leung@polyu.edu.hk
