Material Testing Facilities
Location: W401/W401b
Team: SCN
Process: Material Testing

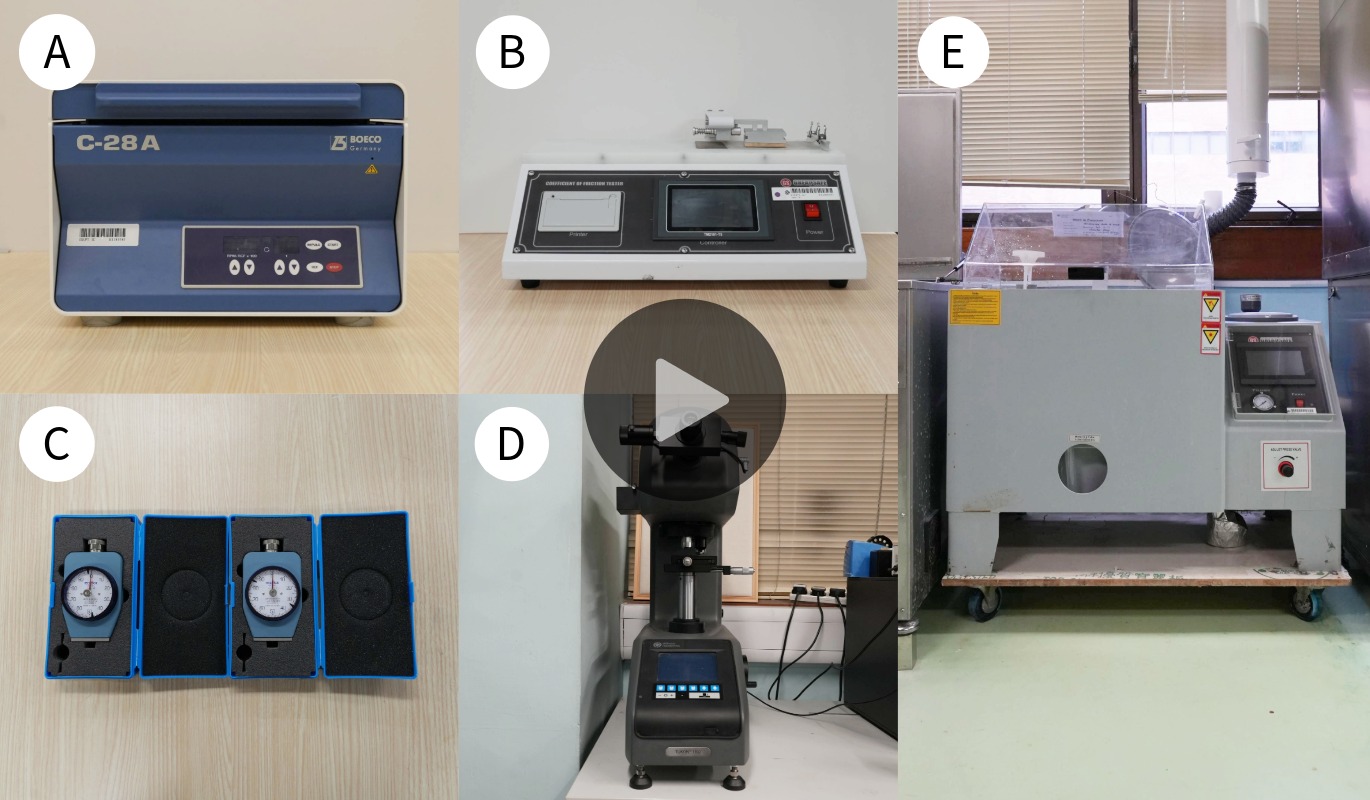

A. Centrifuge
Specification
- Application: Use high-speed rotational force to separate substances of varying densities
- Maximum Speed: Up to 6000rpm
- Rotor Capacity: 8 tubes per rotor
B. Coefficient of Friction Tester
Specification
- Application: Measure the precise coefficient of friction between two surface interfaces
- Capability: Determine static and kinetic coefficients of friction
- Standard Compliance: ASTM D1894, ISO8295, GB10006, etc.
C. Durometer
Specification
- Application: Measure the hardness of elastomers, plastics, and rubbers
- Measurement Scale: Shore A, Shore C, and Shore D
- Standard Compliance: ASTM D2240, ISO7619, JIS K6253
D. Vickers Micro-Hardness Tester
Specification
- Application: Determine the hardness of materials on a microscopic scale
- Compatible Material: Metals, thin foils, brittle materials
- Test Load (Kgf): 5, 10, 20, 50, 100, 200, 500, 1k
- Dwell Time: 5-99s (with one-second increments)
- Hardness Scale: HV&HK
- Standard Compliance: ISO 6507-1, 2, 3, 4; ISO 4545-1, 2; ASTM E384-08a; ASTM E92-82; ASTM E140; GB/T 4340; JIS Z 2244:2009
E. Salt Spray Tester
Specification
- Application: Evaluate the corrosion resistance of materials and surface coatings
- Available Testing Environment: Neutral salt spray, acetic acid salt spray, copper accelerated acetic acid salt spray
- Standard Compliance: ASTM B117, ASTM G85, ASTM B368, etc.
- Chamber Dimension & Capacity: W600 x D400 x H450 mm, 108L
