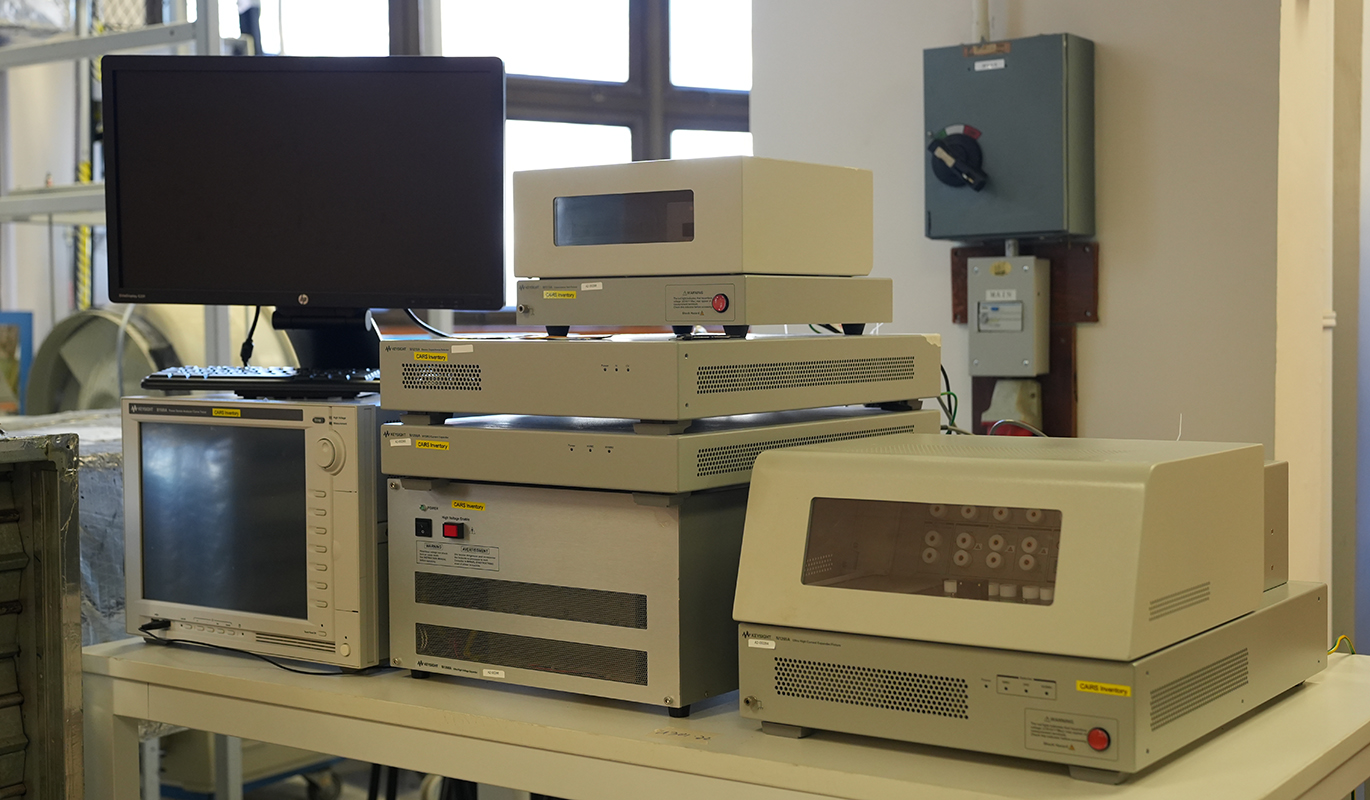

Keysight B1505A Power Device Analyzer/Curve Tracer*
Location: U301
Process: Measurement
*Equipment of CAiRS
**Not yet ready for booking
Key Features
- Come with Ultra High Voltage Expander (N1268A)
- Come with Ultra High Current Expander/Fixture (N1265A)
- Come with High Voltage Source Monitor Unit Current Expander (N1266A)
- Come with Device Capacitance Selector, VOLT: DC+/-3000V (N1272A)
- Come with Capacitance Test Fixture (N1273A)
- Analyze data without an external PC using the intuitive 15-inch touch screen interface
- Enjoy an all-in-one device characterization analyzer supporting IV, CV, pulse/dynamic IV, and more
- Capture ultra-fast transient phenomena not possible with other conventional test instruments
- Switch between CV and IV measurements without re-cabling
- Improve measurement efficiency across a wide range of operating conditions
- Detect multi-frequency AC capacitance measurements from a range of 1 kHz to 5 MHz
- Save set-up information and measurement results automatically
- Streamline data management and analysis with Windows®-based EasyEXPERT group+ software
Specification
- All-in-one solution for power device characterization up to 1500 A/10 kV
- Medium current measurement with high voltage bias (e.g., 500 mA at 1200 V)
- μΩ resistance measurement capability
- Accurate sub-picoamp level current measurement at high voltage bias
- Fully automated thermal test from -50 to +250 °C
