Introduction:

Micro Raman

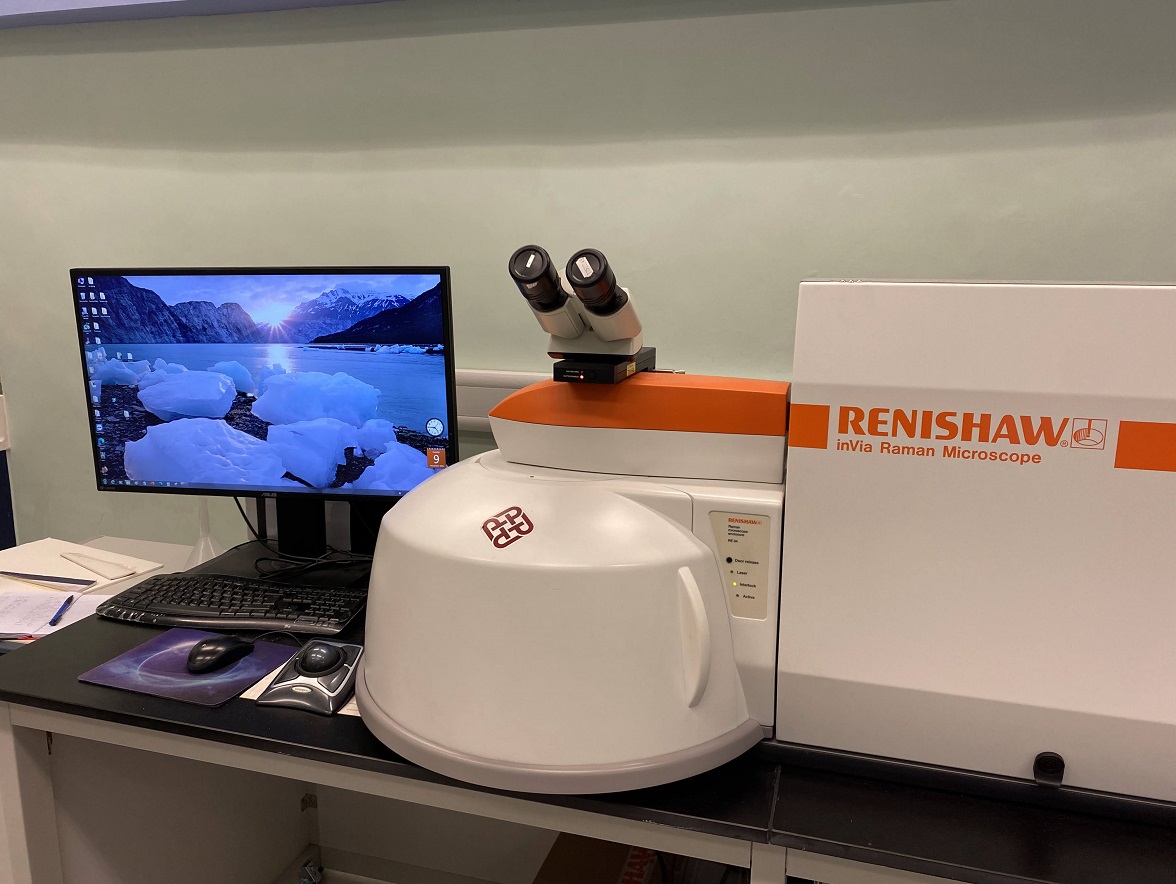

Renishaw Micro-Raman Spectroscopy System is a fully integrated confocal microscope spectrometer designed for rapid and routine Raman spectral measurements and analyses. The system includes two laser sources (532nm & 785nm), confocal microscope, filtering optics, an achromatic spectrograph equipped with two gratings, and multichannel CCD (charge-coupled device) detector.



Specifications:

Spectrometer

  • Wavelength range: 200 to 2200 nm
  • Spectral resolution: 0.3 cm-1 (FWHM)
  • Stability: ±0.01 cm-1
  • Low wavenumber: cut-off 5 cm-1
  • High wavenumber: cut-off 30,000 cm-1
  • Spatial resolution (lateral): 0.25 µm
  • Spatial resolution (axial): 1 µm

Confocal microscope

  • Adjustable confocal pinhole controlled by software
  • Open space microscope for a large free space under the objective turret which shall be able to hold cryostats, high temperature cells or high pressure cells
  • Include 3 objectives (10 x, 50 x and 100 x)
  • Raman mapping accessory
  • High speed data acquisition for fast mapping applications

Applications:

  • Carbon nanomaterials
  • Various nanoparticles of polymer
  • Semiconductor
  • Food and packing samples
  • Active pharmaceutical ingredients
  • Excipients mapping

Software:

  • Renishaw Wire 5.1 instrument control and data acquisition software



Booking:

Please visit our University Research Facility Management System (URFMS) website for registration, training request and booking arrangement.



Notes to users:

First-time users must be trained by equipment-in-charge before they can use the instrument independently.



Contact information:

Location: U003, Block U, The Hong Kong Polytechnic University
Equipment-in-change: Dr. Chi-Hang, Chow (Office: U003)
Email: chihang.chow@polyu.edu.hk
Telephone: 3400 8813
