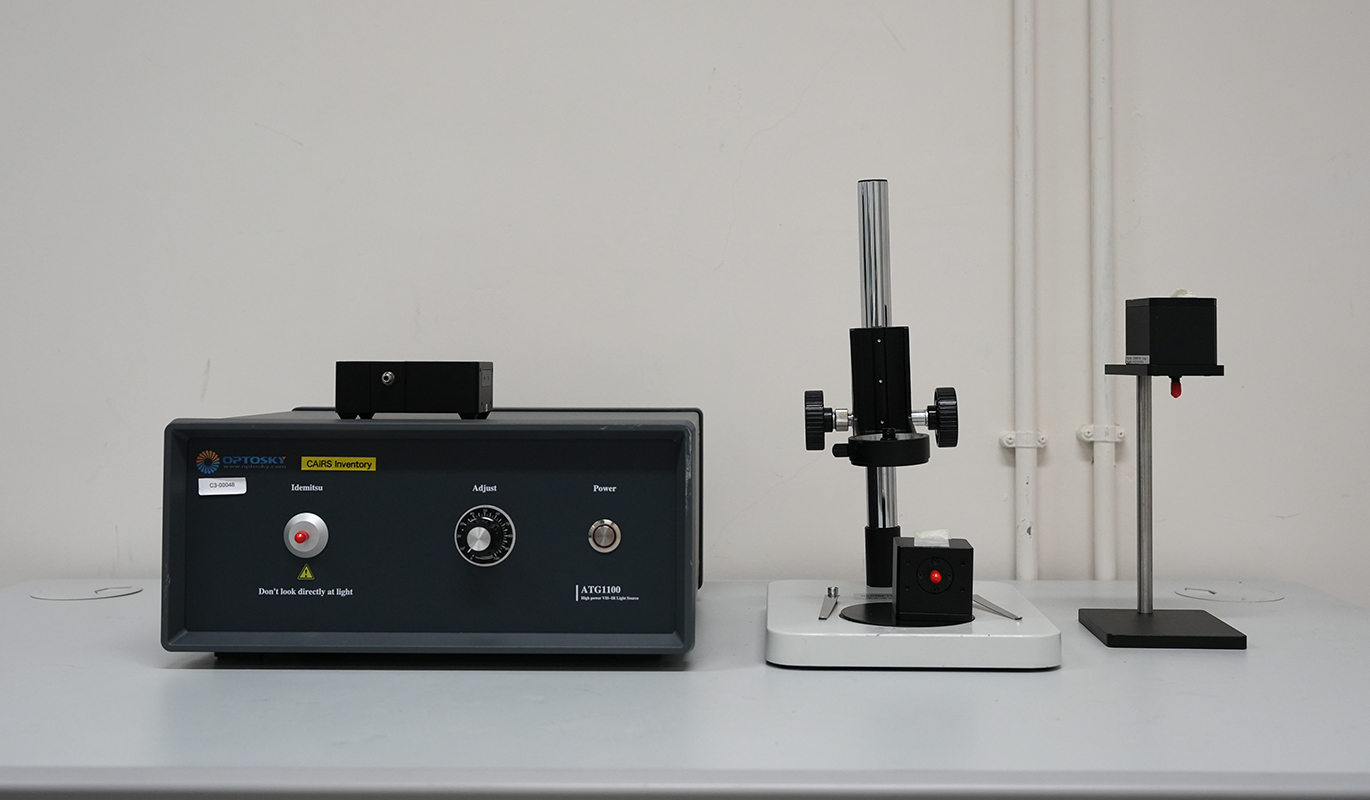

Optosky Fiber Optic Spectral Measurement Set
Location: U301
Process: Measurement
*laptop is not included
Key Features
Optosky Micro Spectrometer (ATP2000 Series)
- Maximum spectral range: 190nm - 1100nm (up to 800nm wide)
- Signal acquisition frame rate: Up to 4Kfps
- Detector: Linear low-noise CMOS
- Detector pixels: 2048 or 4096 pixels
- Spectral resolution: 0.1 to 3.0 nm (depending on spectral range and slit width)
- Optical path structure: Cross C-T
- Integration time: 0.2ms to 65s
- Power supply: DC 5V ±5% or USB power
- ADC: 16bit, 15MSPS
- Fiber input interface: SMA905 or free-space input
- Data output interfaces: USB 2.0, UART, or Gigabit Ethernet
- 20-pin dual-row programmable expansion interface
Key Features
High Power VIS-IR Light Source (ATG1100)
- Broad spectrum:360~2500nm
- Built-in 100W Halogen lamp
- Constant current high blue spectrum output
- High-efficiency and low-loss optical coupling
- Long lifetime>2000hrs
- High stability, spectral shift ≤0.5% per hour
- Adjustable output light intensity
- Good heat dissipation performance to ensure continuous and stable power output
Specifications
High Power VIS-IR Light Source (ATG1100)
- Built-in light source: 100W spectrum Halogen Lamp
- Colour temperature: 5000k
- Drift of optical output: <0.5% per="">
- Light source life: >2000 hours
- Llight source output: SMA905 optical fiber interface
- Maximum output optical power: 6.3W
Remarks
- Users should have optical background to operate optical instruments.
- The instruments are desktop equipment and come with DC power supply sources.
- Software should be installed on a computer to interface with the instruments.
- All optical instruments should be kept clean and handled properly.
- For safety reasons, users are advised not to look directly at the output of the light source or the optical fiber connectors.
